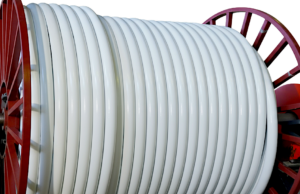

We manufacture flexible composite pipes up to 8 inches in coils and up to 20″ in bars for working pressures up to 3000 psi under our registered brand OILTECHPIPE. Our product is the result of work of the company engineering staff and has a number of characteristics that provide an indisputable advantage over the analogues available on the market. Pipes have increased reliability and strength due to special reinforcing profiles, which ensure their more dense laying with uniform loading, and polymer anti friction layer under the outer sheath. The design of reinforcing profiles and technology of their laying is the company’s own development.
* other sizes available
OILTECHPIPE can be installed onshore and offshore.
OILTECHPIPE have a number of advantages compared with the traditionally used steel pipes:
No corrosion;
Reduced pipeline cost;
Reduced pipeline installation time;
Production of long-length parts;
Low thermal conductivity factor;
High resistance to aggressive environments;
Possibility of electric heating;
Low hydraulic losses;
Low friction, no scale or erosion;
Low operating costs;
No cathodic protection.
OILTECHPIPE are designed and produced according to API 15S, API 17J and ISO 13628-2

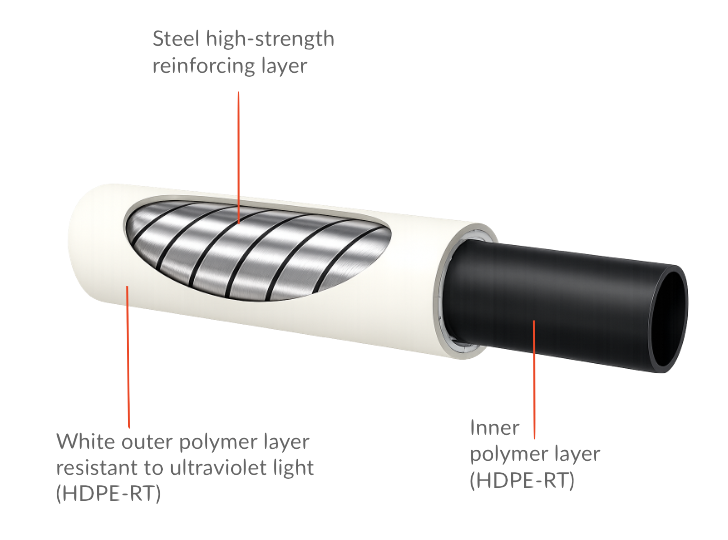

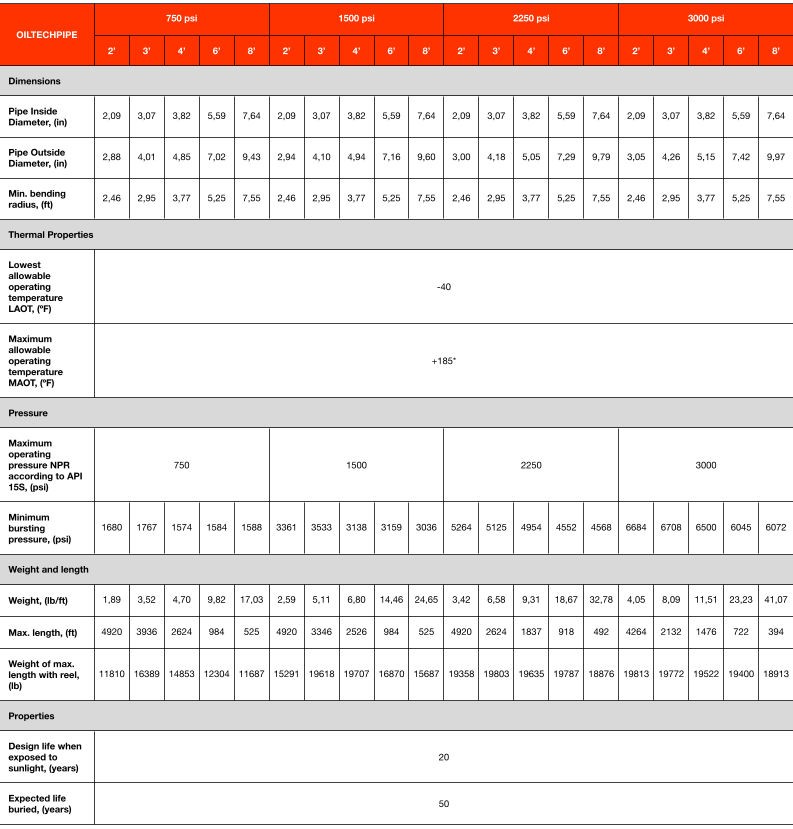

The pipe consists of inner and outer polymer layers and intermediate
reinforcing layer based on profiled metal tapes.

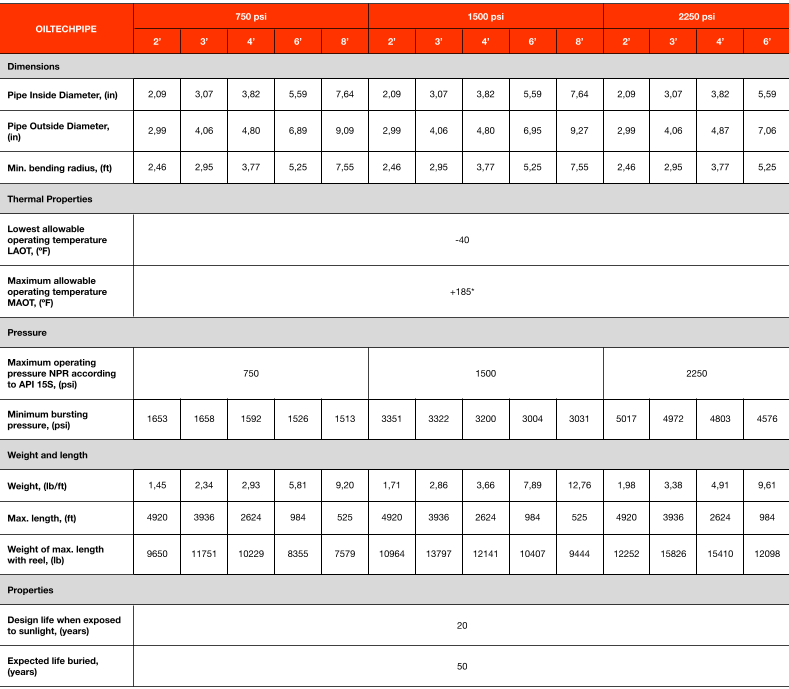

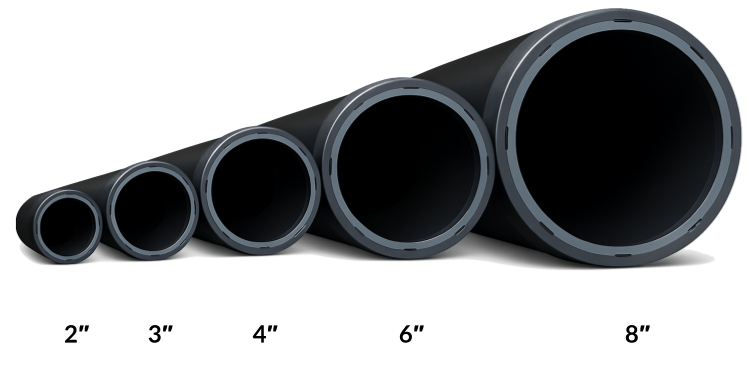

Nominal diameters (in): 2-8 Operating pressure (psi): 750-3000 Operating temperature (°F): -40…+185* Transported fluids: oil, gas, and water.
OILTECHPIPE is produced both
for onshore and offshore
applications and differs by material
of its outer sheath.
* Higher temperature resistant pipes are available

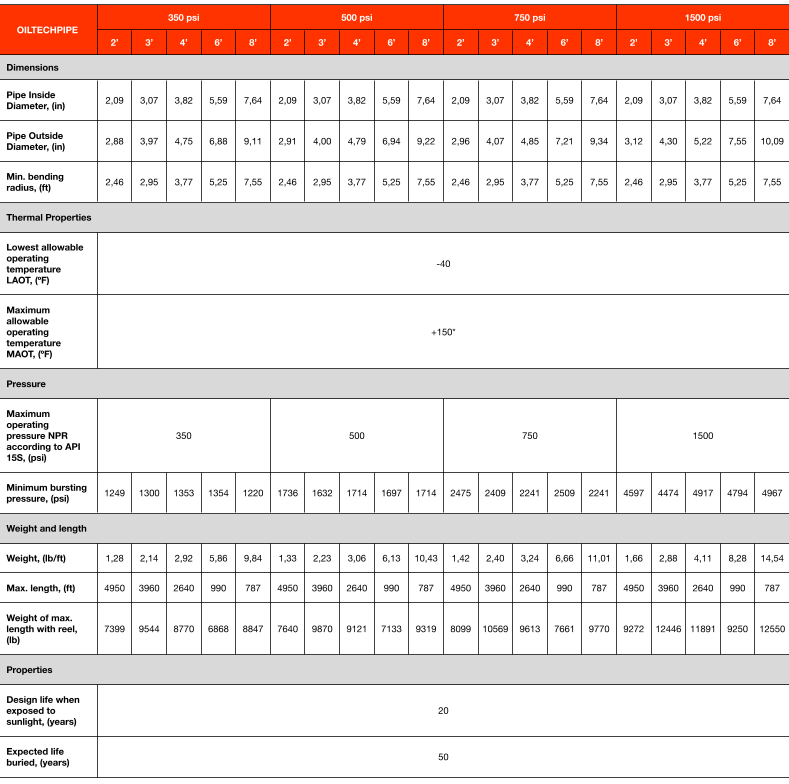

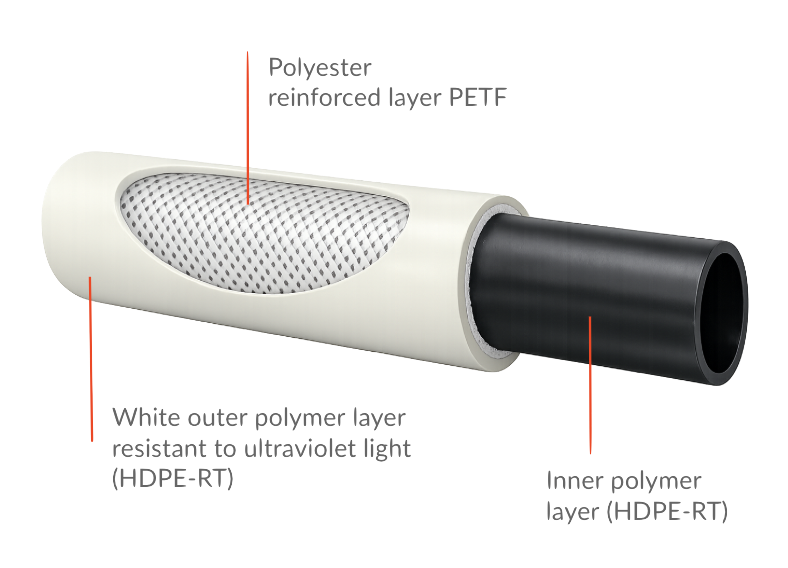

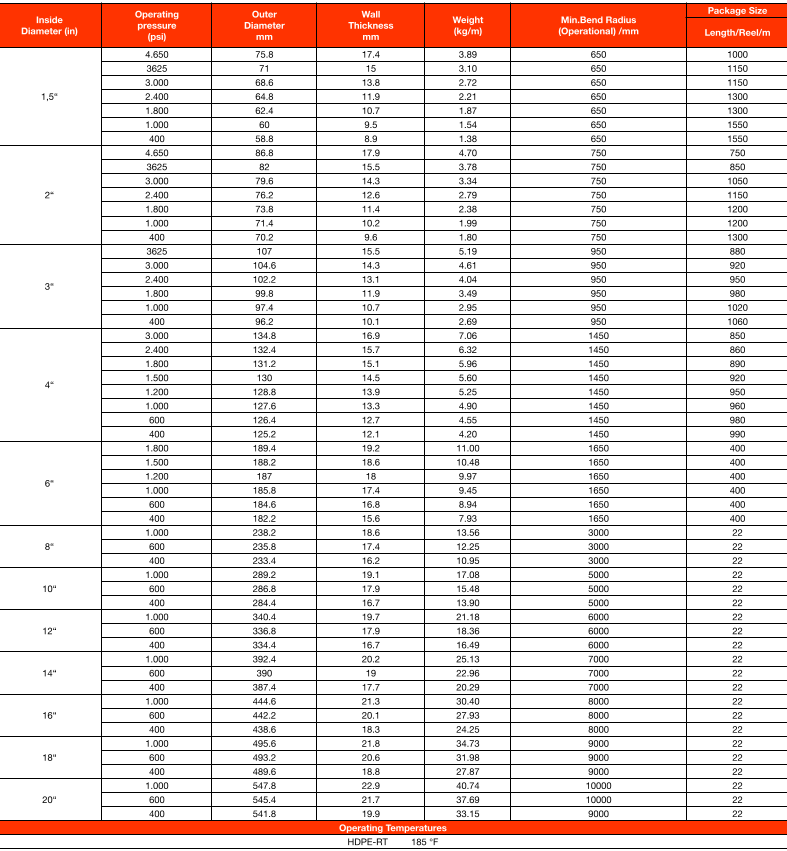

The pipe consists of inner and outer polymer layers and intermediate
reinforcing layer based on polyester yarns.
